AIP Supplement for VIET NAM

AIP SUP

43/23

Effective from 30 NOV 2023

to PERM

Published on 24 OCT 2023

  REVISION OF ATS ROUTES PARAMETERS, AREA CHART, FLIGHT PROCEDURE CHARTS AND AERODROME OPERATING MINIMA AT DIEN BIEN AERODROME

1 — INTRODUCTION

This section supplements the following portion(s) of the AIP: AD.

On 19 OCT 2023, AIRAC AIP Supplement A42/23 was published to notice on putting Dien Bien Airport into operation, effective from 30 NOV 2023.

This AIP Supplement aims at notifying the revision of following contents (ENR, VVDB):

  1. Parameters of ATS routes B468, W4 and en-route chart.

  2. ATS airspace and Area Chart.

  3. Missed approach climb gradient (MACG) to 2.5% and 4% (Not applicable 5%) in Instrument Approach Chart RNP Z, RNP Y RWY 35.

  4. AD Operating Minima.

2 — DETAILS

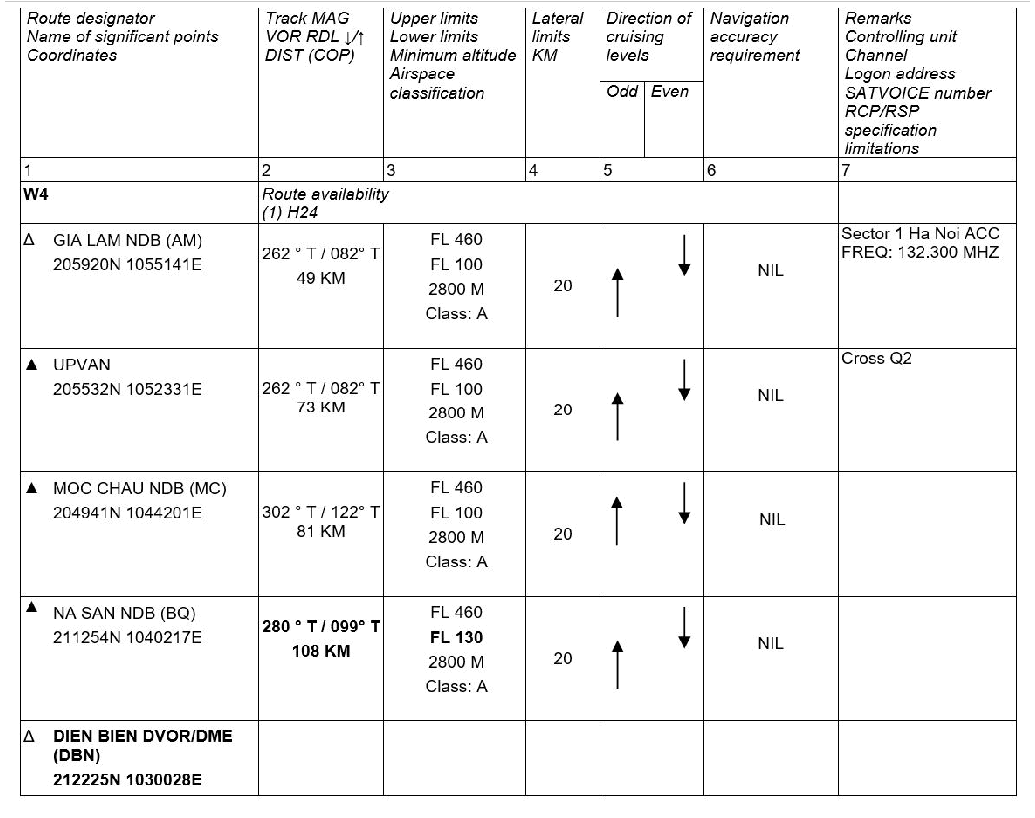

2.1  Revision of parameters of ATS routes B468, W4

Note: Replacement of DIB DVOR/DME to DBN DVOR/DME.

Refer to Viet Nam AIP, pages GEN 2.5-1, GEN 2.5-3, ENR 3.1-7, ENR 3.1-36, ENR 4.1-2.



2.2  Revision of en-route chart

Note: Replacement of DIB DVOR/DME to DBN DVOR/DME.

Refer to Viet Nam AIP, page ENR 6-3

See page 10 for detail

2.3  Revision of ATS airspace

Refer to AIP Viet Nam, page AD 2-VVDB-1-8, item VVDB AD 2.17.

1

Designation and lateral limits

Dien Bien CTR: The line that connects points with coordinates:

  1. P1: 214103N 1025923E

  2. P2: 213750N 1031811E

  3. P3: 213033N 1032428E

  4. BEKLI: 211808N 1032836E

  5. GUPET: 210900N 1032417E

  6. P4: 205735N 1031203E

  7. P5: 205735N 1030505E

  8. Along Vietnamese and Laos border,

  9. P1: 214103N 1025923E

2

Vertical limits

From ground/water up to FL 135 inclusive



2.4  Revision of Area Chart

(Refer to AIP Viet Nam, page AD 2-VVDB-8-1)

See page 9 for detail

2.5  Revision of the following charts:

  1. Instrument Approach Chart – ICAO: RNP Z RWY 35

    Page 24 (Instrument Approach Chart – ICAO: RNP Z RWY 35) of AIRAC AIP SUP A42/23 shall be cancelled by page 5 (Instrument Approach Chart – ICAO: RNP Z RWY 35) of AIP SUP A43/23.

    See page 5 for detail

  2. Instrument Approach Chart – ICAO: RNP Z RWY 35 (Tabular description, holding procedures and waypoint list)

    Page 25 (Instrument Approach Chart – ICAO: RNP Z RWY 35 (Tabular description, holding procedures and waypoint list) of AIRAC AIP SUP A42/23 shall be cancelled by page 6 (Instrument Approach Chart – ICAO: RNP Z RWY 35 (Tabular description, holding procedures and waypoint list) of AIP SUP A43/23.

    See page 6 for detail

  3. Instrument Approach Chart – ICAO: RNP Y RWY 35

    Page 22 (Instrument Approach Chart – ICAO: RNP Y RWY 35) of AIRAC AIP SUP A42/23 shall be cancelled by page 7 (Instrument Approach Chart – ICAO: RNP Y RWY 35) of AIP SUP A43/23.

    See page 7 for detail

  4. Instrument Approach Chart – ICAO: RNP Y RWY 35 (Tabular description, holding procedures and waypoint list)

    Page 23 (Instrument Approach Chart – ICAO: RNP Y RWY 35 (Tabular description, holding procedures and waypoint list) of AIRAC AIP SUP A42/23 shall be cancelled by page 8 (Instrument Approach Chart – ICAO: RNP Y RWY 35 (Tabular description, holding procedures and waypoint list) of AIP SUP A43/23.

    See page 8 for detail

2.6  Revision of AD Operating Minima

Page 7 (AD Operating Minima) of AIRAC AIP SUP A42/23 shall be cancelled by page 4 (AD Operating Minima) of AIP SUP A43/23.

See page 4 for detail

3 — EFFECT

This AIP Supplement shall become effective from 0000 on 30 NOV 2023.

4 — CANCELLATION

This AIP Supplement shall remain in force until its content has been incorporated into the AIP Viet Nam.
