ContactPost: Civil Aviation Authority of Viet Nam Telephone: +84 24 38274191 Fax: +84 24 38274194 Email: and@caa.gov.vn Web: http://caa.gov.vn | AIP Supplement for VIET NAM | AIRAC AIP SUP 34/23 Effective from 05 OCT 2023 to PERM Published on 24 AUG 2023 |
This section supplements the following portion(s) of the AIP: AD.
This AIRAC AIP Supplement aims at notifying the establishment of the following contents at Ca Mau Aerodrome (VVCM):
Performance-based navigation flight procedure charts.

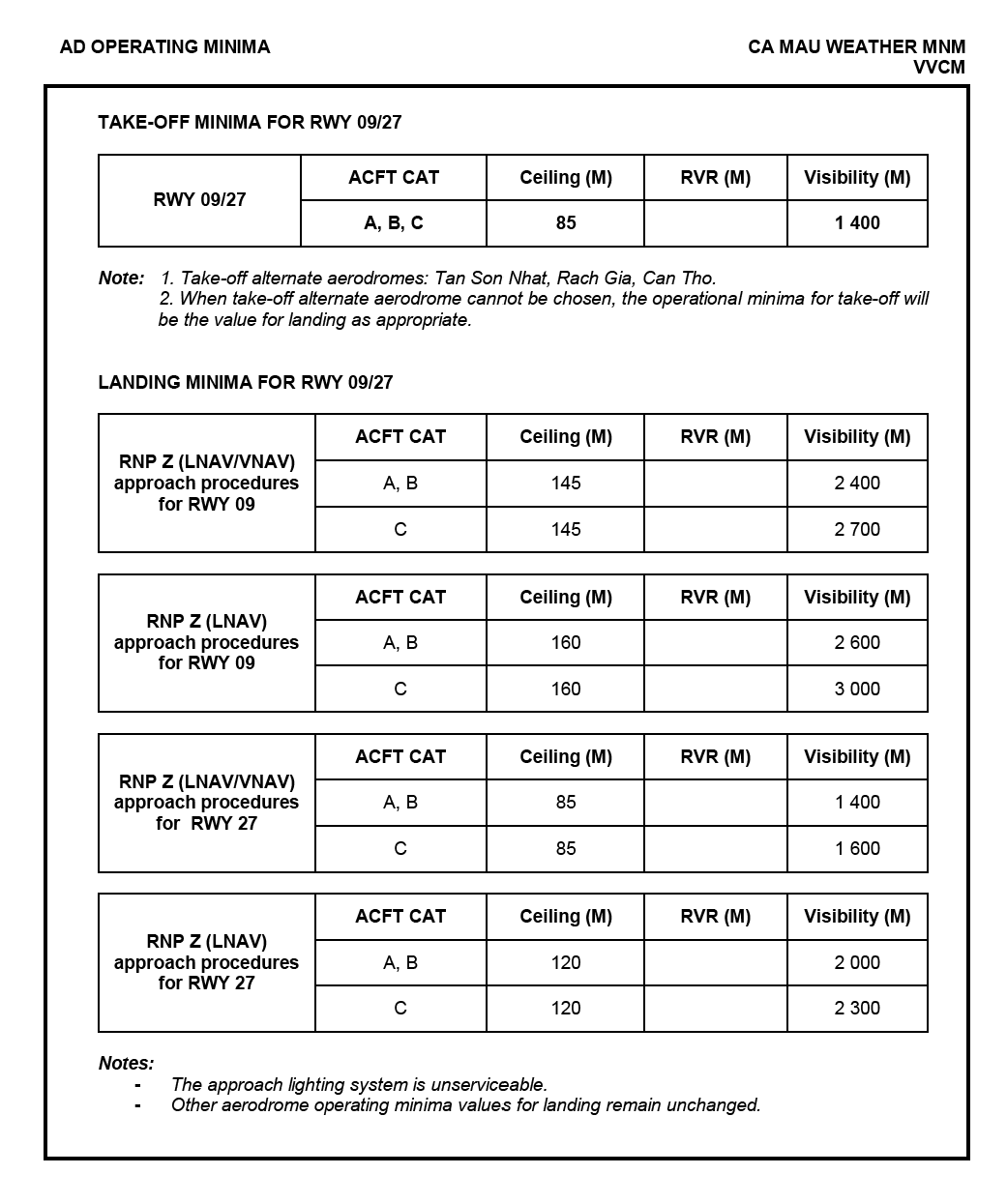

Aerodrome Operating Minima.

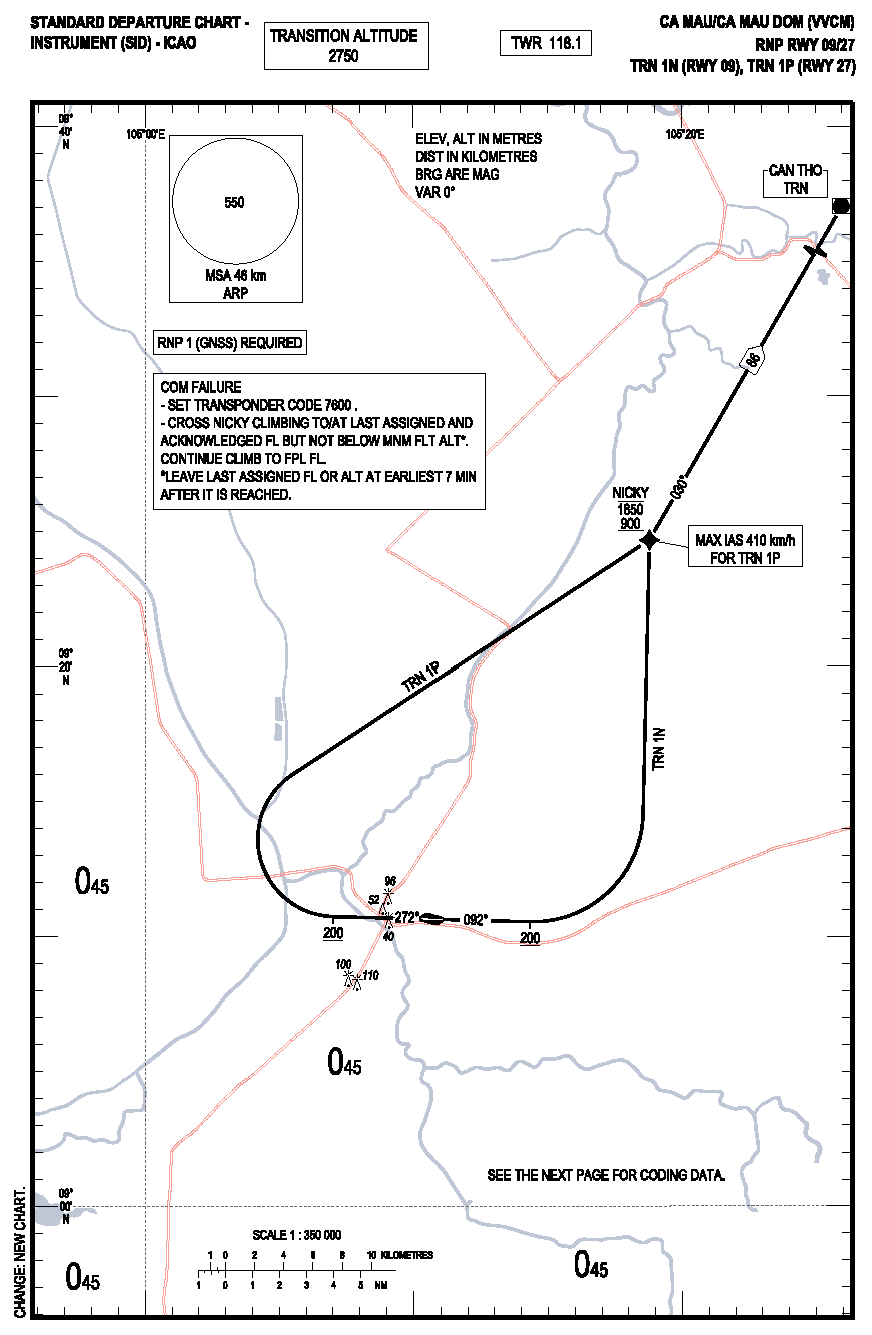

Standard Departure Chart – Instrument (SID) – ICAO – RNP RWY 09/27: TRN 1N (RWY 09), TRN 1P (RWY 27).
See page 3 of this AIRAC AIP Supplement for details.

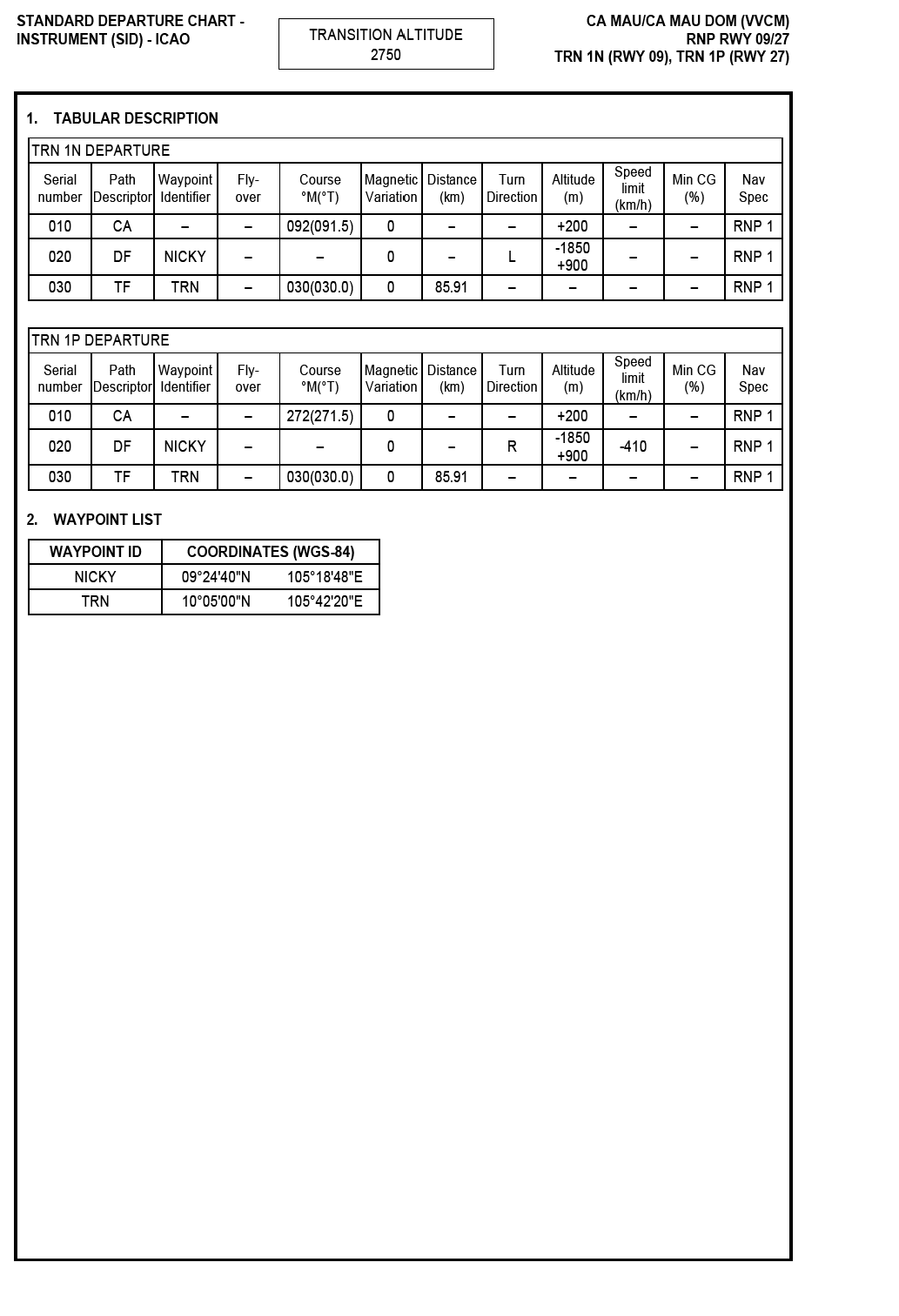

Tabular description and waypoint list.
See page 4 of this AIRAC AIP Supplement for details.

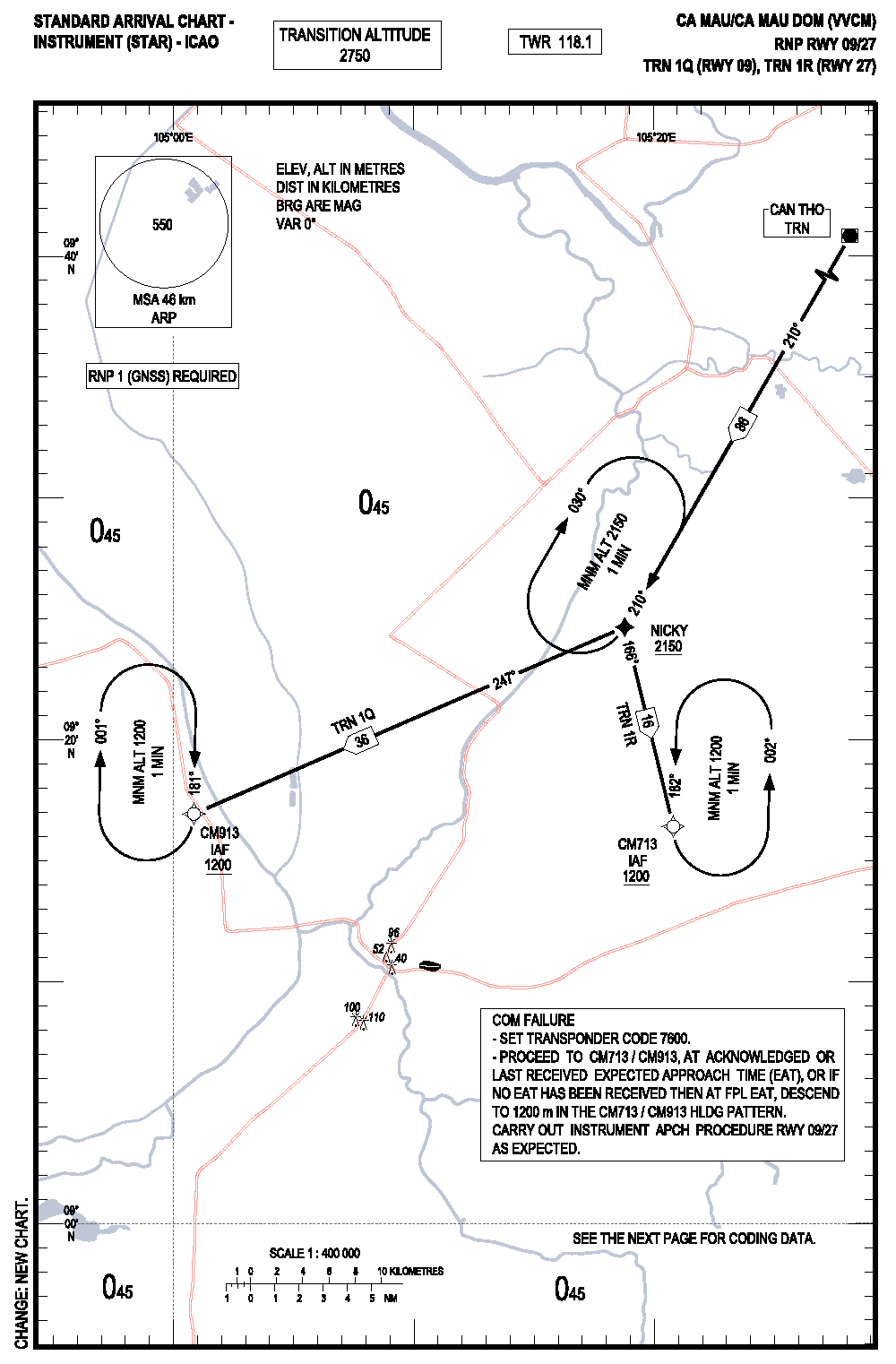

Standard Arrival Chart – Instrument (STAR) – ICAO – RNP RWY 09/27: TRN 1Q (RWY 09), TRN 1R (RWY 27).
See page 5 of this AIRAC AIP Supplement for details.

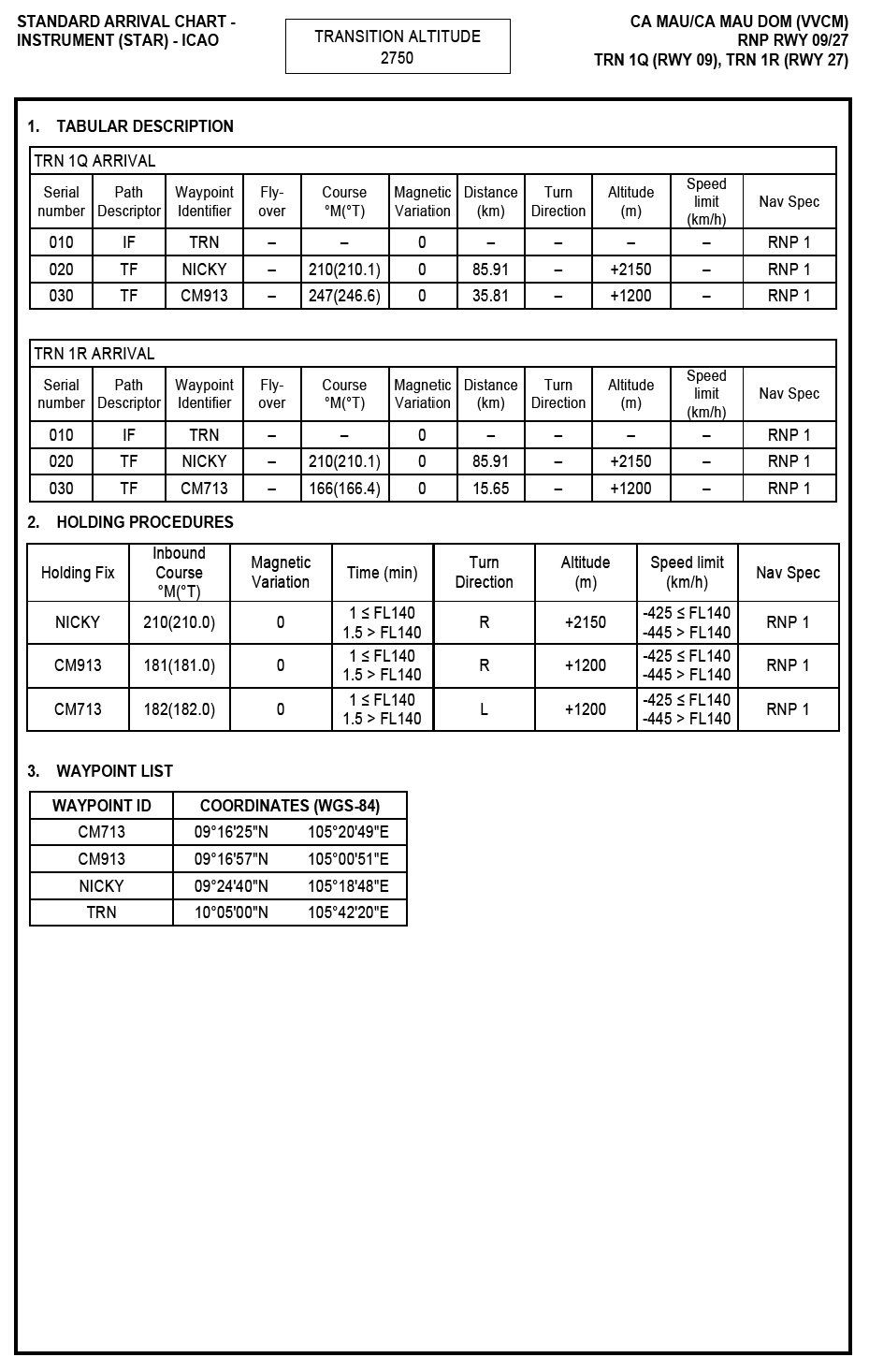

Tabular description, holding procedures and waypoint list.
See page 6 of this AIRAC AIP Supplement for details.
Instrument Approach Chart – ICAO: RNP Z RWY 09.
See page 7 of this AIRAC AIP Supplement for details.

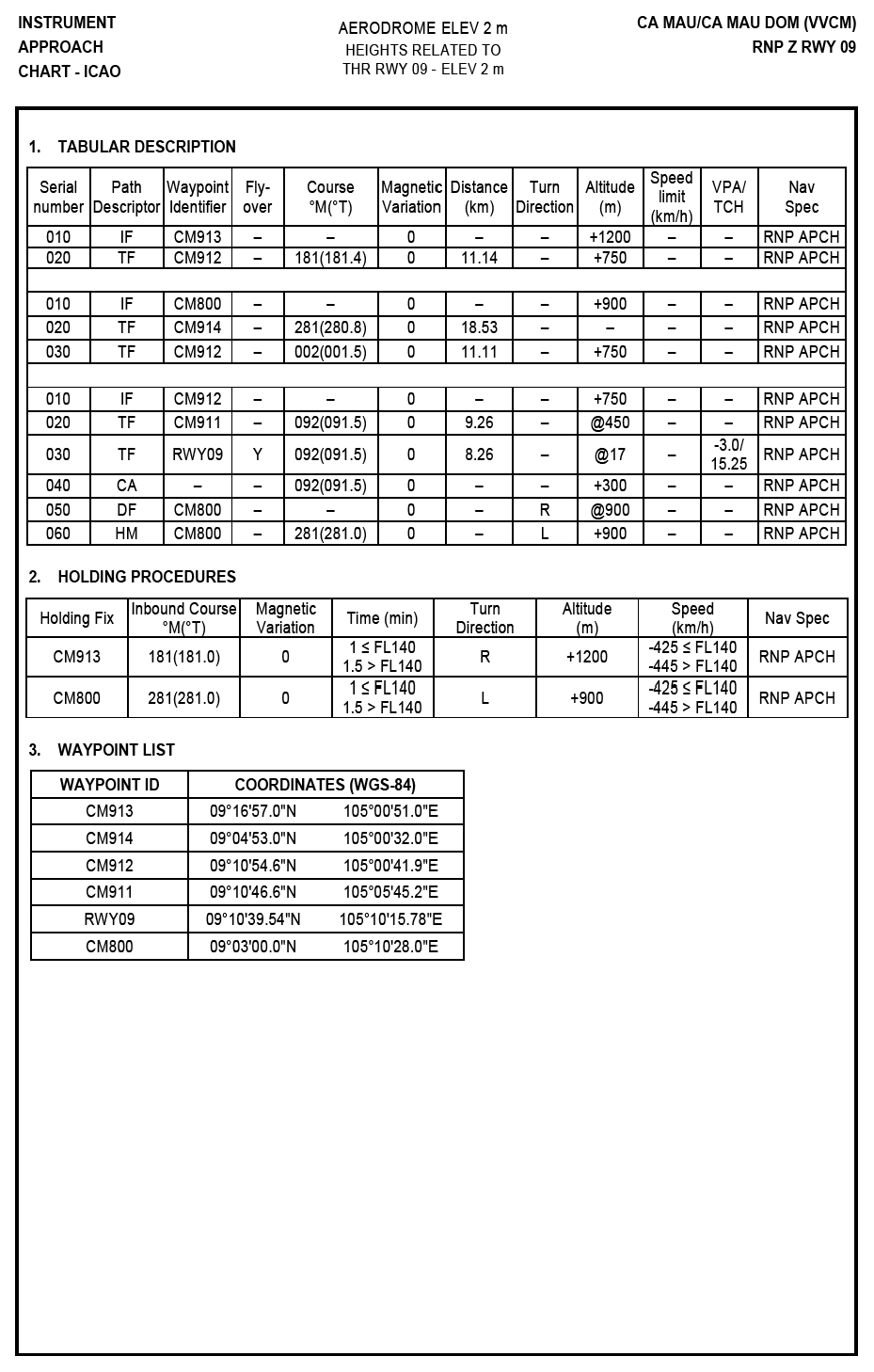

Tabular description, holding procedures and waypoint list.
See page 8 of this AIRAC AIP Supplement for details.

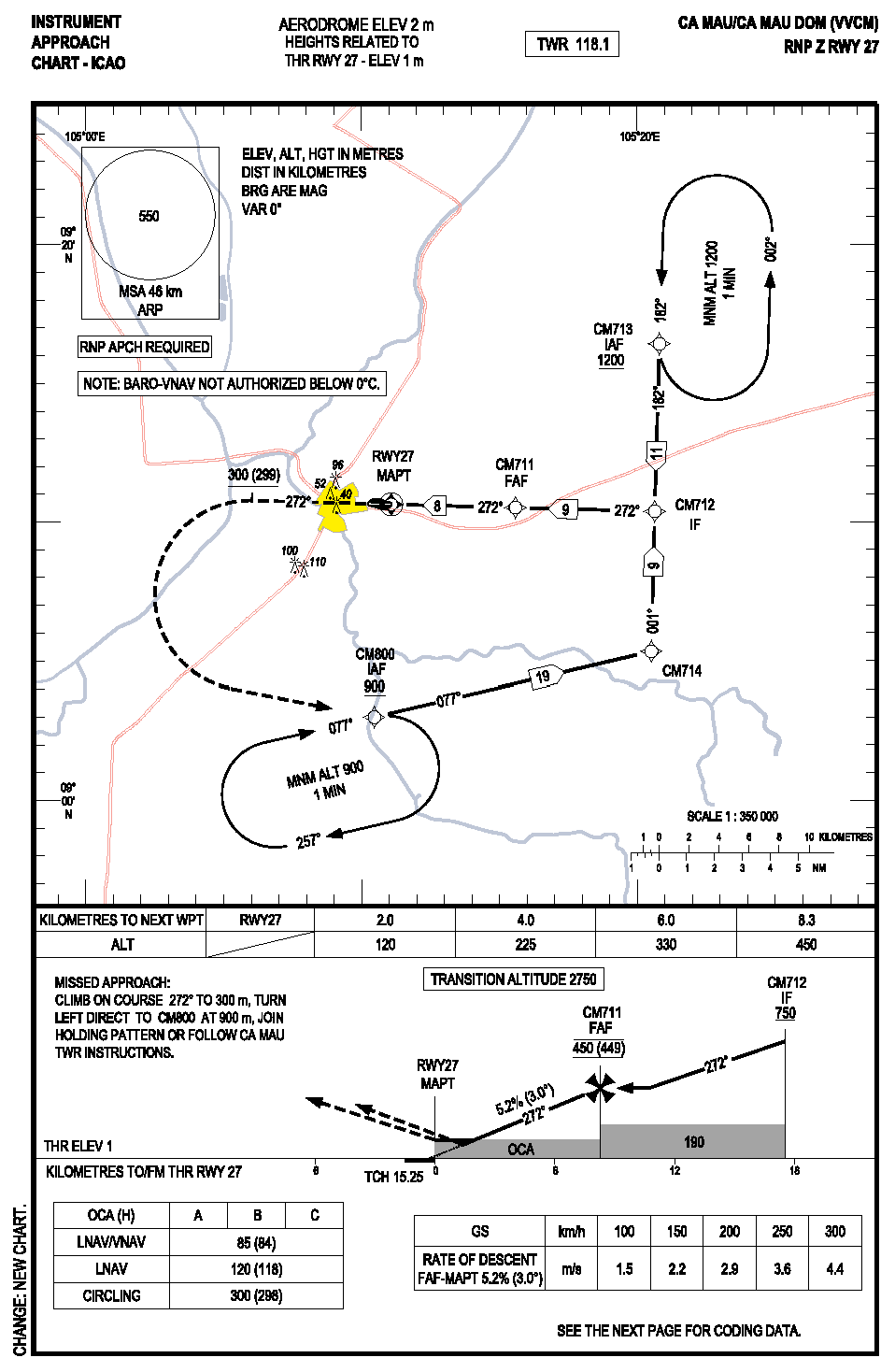

Instrument Approach Chart – ICAO: RNP Z RWY 27.
See page 9 of this AIRAC AIP Supplement for details.

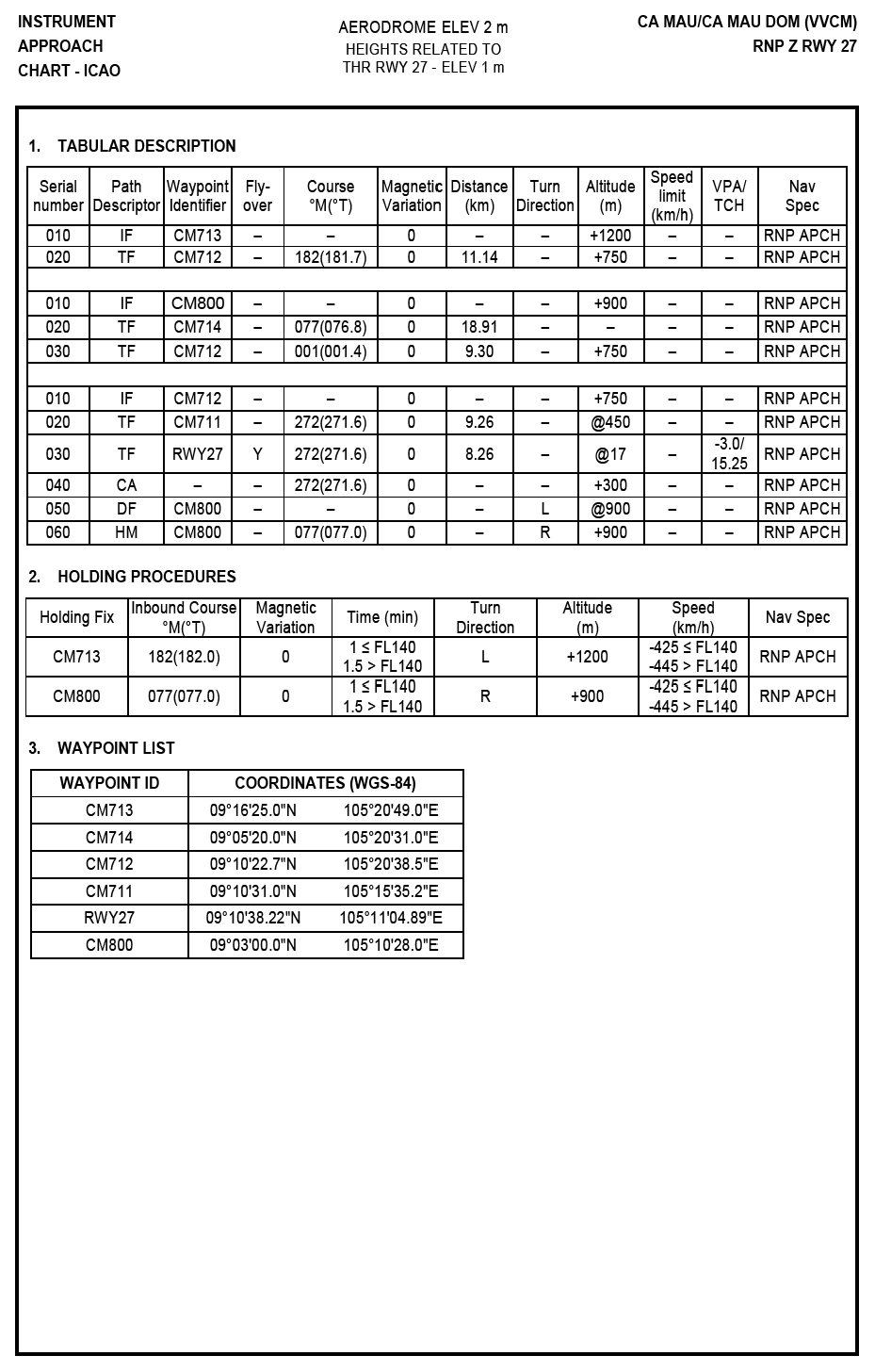

Tabular description, holding procedures and waypoint list.
See page 10 of this AIRAC AIP Supplement for details.
See page 11of this AIRAC AIP Supplement for details.
This AIRAC AIP Supplement shall become effective from 0000 on 5 OCT 2023.
This AIRAC AIP Supplement shall remain in force until its content has been incorporated into Viet Nam AIP.
